Ultra Sonic Testing
![images (4).jpg](https://static.wixstatic.com/media/ef95c3_f0de7e5d8cd842e288397e50b86b8f4d~mv2.jpg/v1/fill/w_190,h_50,al_c,q_80,usm_0.66_1.00_0.01,enc_auto/images%20(4).jpg)
![download (6).jpg](https://static.wixstatic.com/media/ef95c3_cad55e833d3742ecbffe8e5355da1b3b~mv2.jpg/v1/fill/w_374,h_258,al_c,lg_1,q_80,enc_auto/download%20(6).jpg)
![download (8).jpg](https://static.wixstatic.com/media/ef95c3_efd97cffbbe74c01887f3e89d05fc7dc~mv2.jpg/v1/fill/w_446,h_190,al_c,lg_1,q_80,enc_auto/download%20(8).jpg)
![download (9).jpg](https://static.wixstatic.com/media/ef95c3_257fe2105f044c11b9a2b2adbc0ee59a~mv2.jpg/v1/fill/w_325,h_302,al_c,lg_1,q_80,enc_auto/download%20(9).jpg)
-
Induce high frequency sound waves into tube, defects will echo back the signals to be detectable.
-
Can be used on a wide variety of carbon steel materials as well as some SS. Suitable for tubes 2”OD & 1/4” wall thickness, and larger.
-
Great for ID & OD sensitivity. Can inspect flash in material.
-
Excellent repeatability and calibration retention.
-
Liquid couplant needed, surface temperature must be below boiling temperatures.
-
Hard to detect small defects at high speed
​
​

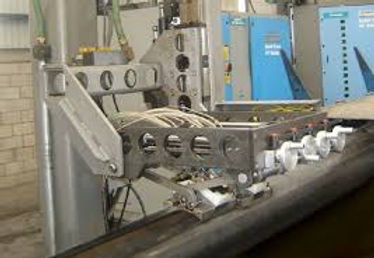

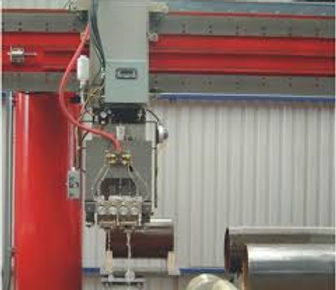

System
​
-
High frequency acoustic waves are sent from the transducer into the material through a couplant (mill/coolant/water).
-
Any reflection of the wave back to the transducer from the discontinuity creates an electrical signal signifying that there is a defect/anomaly present.
-
Min OD 2” (50mm) and up
-
Min Wall Thickness 0.125” (3mm) and larger
-
Max tested speed up to 300ft/min (91m/min)
